厂家型号 | KF1002 |
GT 编号 | SW-0084 |
生产厂家 | KF |
产品描述 | Electrical Life: 2000 operations per switch 24VDC, 25mA |
产品包装/封装 | Tube |
[无铅 符合 (RoHS)规范要求] |

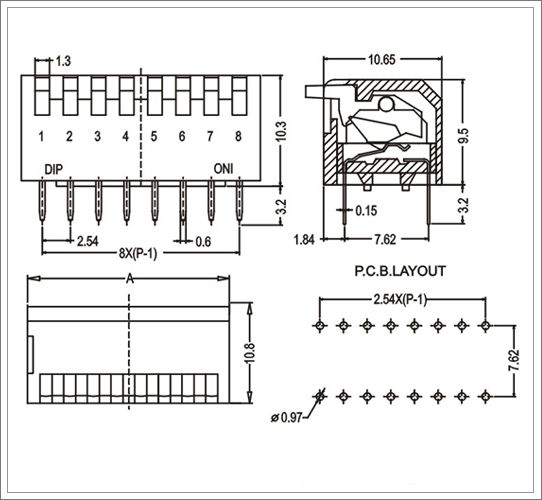

产品技术PDF资料: |
MATERIALS
BASE: UL94V-0 PBT Thermoplastic, Color: Black
COVER: UL94V-0 PBT Thermoplastic, Color: Black
ACTUATORS: UL94V-0 PBT Thermoplastic, Color: Black
TERMINAL: Copper Alloy wich gold plating
MECHANICAL
Operation Force: 0.2kgf max.
Stroke: 2.0mm
Operation Temp: -20ºC to 70ºC
Storage Temp: -40ºC to 85ºC
ELECTRICAL
Electrical Life: 2000 operations per switch 24VDC, 25mA
Non-Switching Rating: 100mA, 5000VDC.
Switching rating: 25mA, 24VDC.
Contact Resistance: 50mΩ max. at initial.
Insulation Resistance: (at 500VDC)1000mΩ min
