M/P Number	KF1001
GTRADER Item Number	SW-0083
Manufacturer	KF
Description	Electrical Life: 2000 operations per switch 24VDC, 25mA
stock & Packaging	Tube

[Lead free ｜ RoHS Compliant]

Product technical PDF data:

Pricing (USD)

Please call or email us for pricing.

Images are for reference only

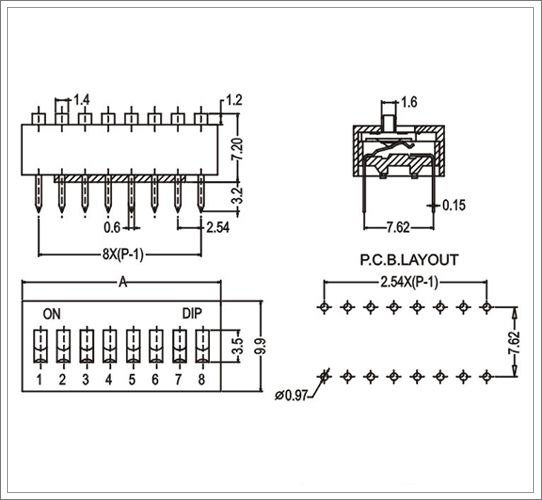

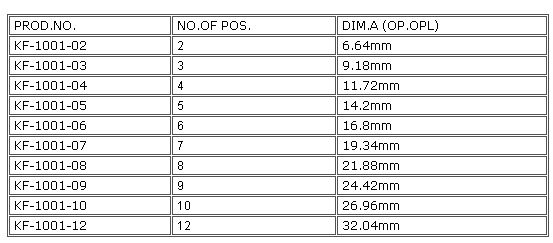

See Product Specifications

Description

MATERIALS
BASE: UL94V-0 PBT Thermoplastic, Color: Black
COVER: UL94V-0 PBT Thermoplastic, Color: Black
ACTUATORS: UL94V-0 PBT Thermoplastic, Color: Black
TERMINAL: Copper Alloy wich gold plating
MECHANICAL
Operation Force: 0.2kgf max.
Stroke: 2.0mm
Operation Temp: -20ºC to 70ºC
Storage Temp: -40ºC to 85ºC
ELECTRICAL
Electrical Life: 2000 operations per switch 24VDC, 25mA
Non-Switching Rating: 100mA, 5000VDC.
Switching rating: 25mA, 24VDC.
Contact Resistance: 50mΩ max. at initial.
Insulation Resistance: (at 500VDC)1000mΩ min
Dielectric Strength: 500VAC/1minute.。
